ZYTC Alloy, a professional Chinese medical alloy supplier, provides premium ASTM F67 Titanium Grade 4 (3.7065 / UNS R50700) commercially pure titanium for surgical implant manufacturing.
ASTM F67 governs the chemical composition, mechanical and metallurgical requirements for unalloyed titanium products including strips, sheets, plates, bars, billets, forgings and wires used in surgical implants. ZYTC Alloy can deliver mill products with multiple surface finishes: descaled, pickled, abrasive blasted, chemically milled, ground, machined, peeled or polished, as per customer drawing specifications. Material supply conditions cover hot-worked, cold-worked, forged, annealed and stress-relieved states. Full mechanical property testing is available for ultimate tensile strength, yield strength, elongation and reduction of area.
Titanium Grade 4 is the highest strength grade among commercially pure titanium series. Strict control on interstitial elements (carbon, oxygen, nitrogen, hydrogen) and iron content guarantees stable biocompatibility for long-term human implantation. In oxygen-rich environments, it spontaneously forms a protective titanium dioxide passive film, delivering exceptional corrosion resistance against body fluid. This implant-grade titanium can be cold formed to achieve elevated strength while retaining reliable ductility. Balanced strength, corrosion resistance and tissue compatibility make it the preferred raw material for orthopaedic and dental precision medical components.
Typical Chemical Composition
| Element | Min | Max |
|---|---|---|
| C | – | 0.08 |
| Fe | – | 0.50 |
| O | – | 0.40 |
| N | – | 0.05 |
| H | – | 0.0125 |
| Ti | – | Balance |
Typical Mechanical Properties
| Item | Annealed | Cold worked |
|---|---|---|
| Tensile (Rm) Mpa | 800-900 | 930-1135 |
| Yield (R0.2%) Mpa | 620 | 655-825 |
| Elongation A4d (%) | 10 | — |
Applications
- Surgical & medical implants
- Medical precision instruments
- Dental instruments and dental implant parts
- Surgical device components
- Micro-engineering parts
- Watch-making components
Specifications
- Material: Titanium Grade 4
- Material No.: 3.7065
- EN/DIN: Ti-4
- UNS: R50700
- AFNOR: T60
- ISO 5832-2
- ASTM B348
- ASTM F67
Availability

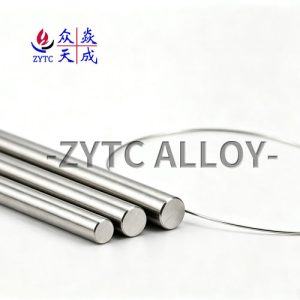

As a reliable Chinese medical alloy supplier, ZYTC Alloy supplies Titanium Grade 4 (3.7065) wire and round bar, diameter range from 1.50mm up to 35.00mm. Custom sizes and custom surface finishes are available upon request. We provide full material test certificates for medical implant projects.
